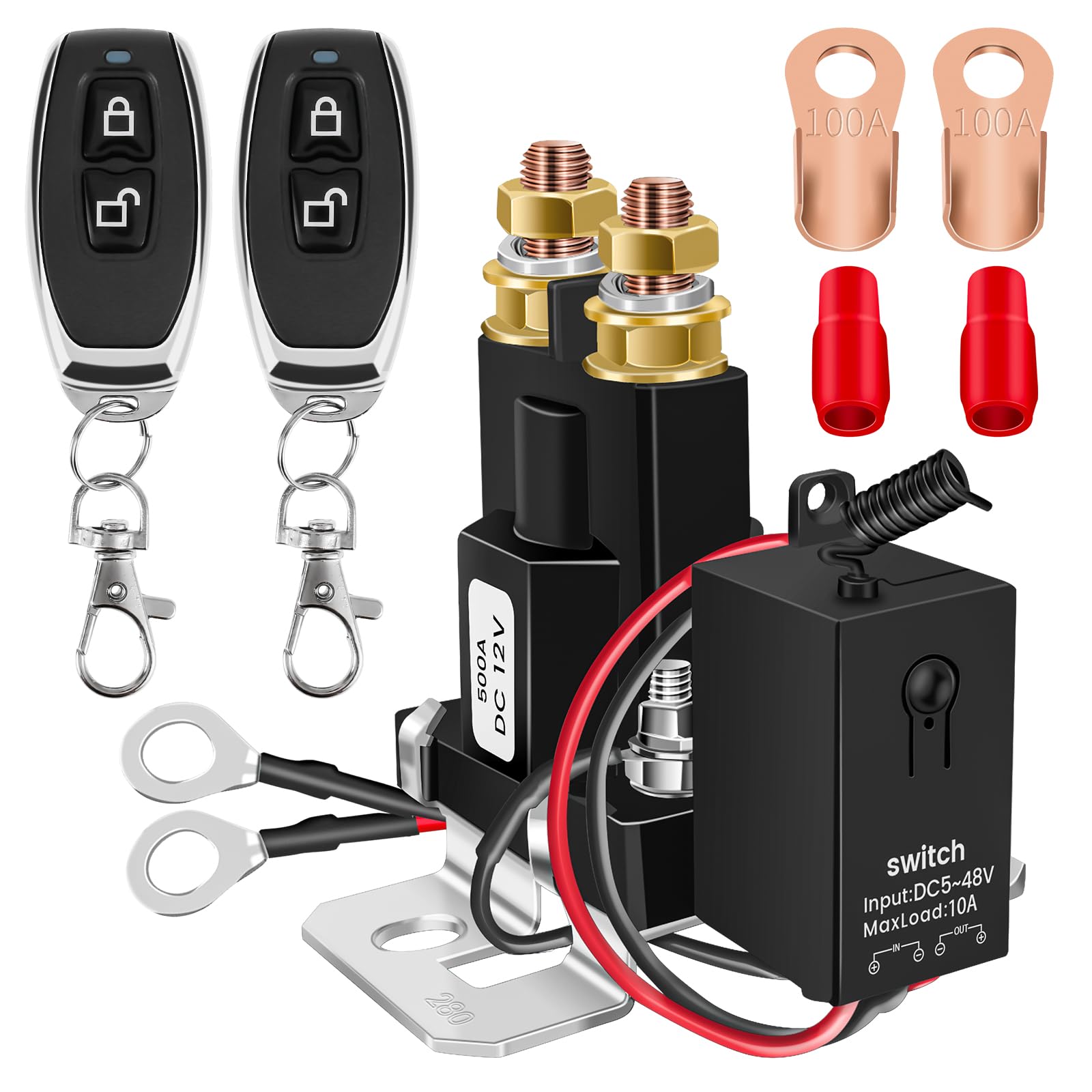

12V 500A Battery Disconnect Switch with 2 Remotes - Heavy Duty Kill Switch for Car, RV, Truck Anti-Theft Protection | Perfect for Marine, Off-Road Vehicles & Power Cut Off Safety

Product Description

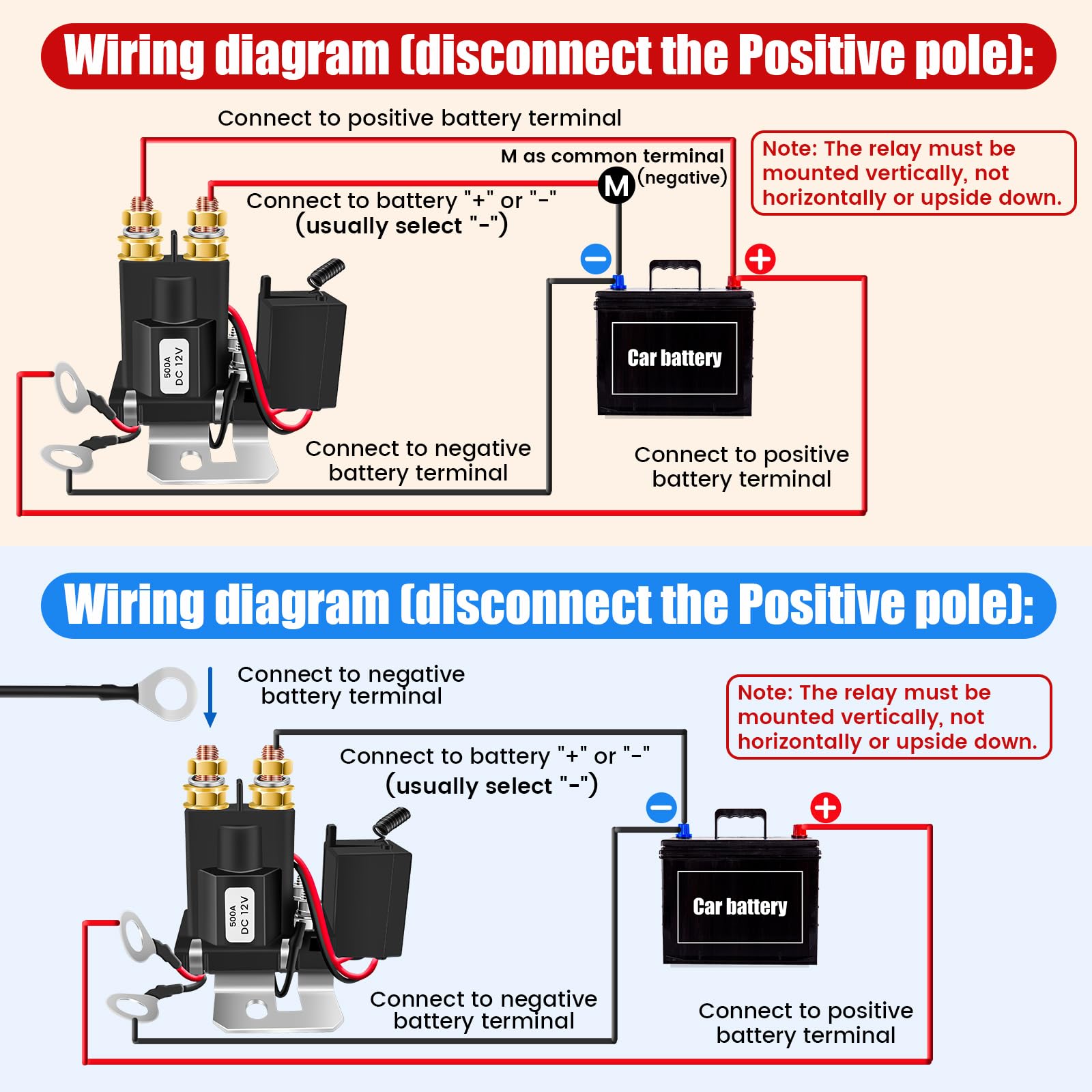

The battery disconnect switch allows you to disconnect the car battery with a remote control, which not only prevents the battery from discharging and protects the circuit, but also prevents thieves from starting and stealing the car. Previous page Next page 1 Disconnect Negative Pole 2 Disconnect Positive Pole How to install this Battery Disconnect Switch? 1. If you need to check the negative post, remove the negative post wire of the original battery. If you need to check the positive post, remove the positive post wire of the original battery. 2. If you need to check the negative post, connect pin 30 of the relay to the negative post of the battery. If you need to check the positive pole, connect the 30 pin relay to the positive pole of the battery. 3. Connect the wires removed from the original battery to pin 87 of the switch. 4. Connect the two wires of the switch to the positive and negative terminals of the battery. The red wire (86 pin positive pole), the black wire (85 pin negative pole) Attentions: 1. After installation, turning on the relay will increase the battery power consumption, when leaving the car to close the total power supply with the remote control in time, so as not to consume power for too long caused by loss of battery power, can't start. 2. Since the entire power supply of the car is cut off, the alarm, on-board computer and other power failures can't work. The car must be turned off without impact before it can be used. 3. During normal driving, do not disconnect the relay switch, to avoid increasing the voltage of the generator and damaging the car appliances. There may be slight differences in color due to individual monitor resolutions and settings. In addition, due to differences in measurement methods and tools, there may be an error of 1-3mm, which is normal. Battery Disconnect Switch 500A instantaneous current 500A Rated current 300A Rated voltage 12V DC Contact load 14V DC Double protection manual button + remote control Function Prevent the battery from running out, energy loss occurs Shell material flame retardant PA nylon Wiring column purple copper Widely Used for Various Applications The remote battery disconnect switch is widely used in car, truck, RV, caravan, travel trailer, SUV, ATV, UTV, marine, van, boat, tricycle batteries, agricultural vehicle, trike, off-road vehicle and other 12v batteries for electrical equipment. Will there be no power consumption after cutting off the power of the car battery? No, the relay is installed to slow down the discharge of the battery. The relay itself has a 1.8W low-power coil. What should I do if nothing happens when I use the remote control? Check the lights on the remote control. If the indicator light does not light up, the electronic component needs to be replaced. The indicator light is on, indicating that there is signal interference around and the code needs to be cleared. Clear code steps Before turning on, press and hold the lock key, turn on for 10 seconds, then release the lock key, so that all codes will be erased.
